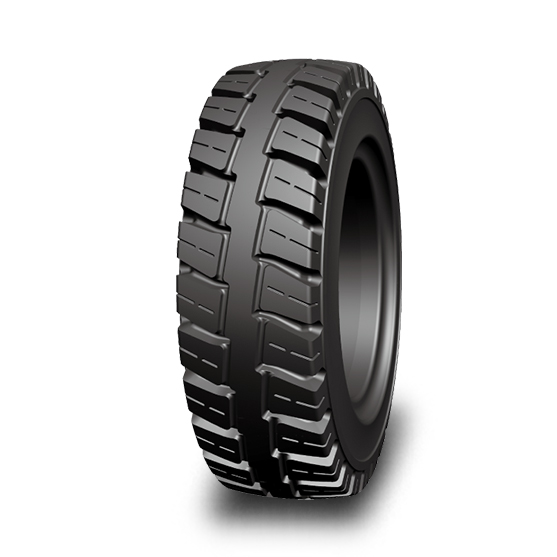

Solid Tyre
Product Details
| 规格 SIZE |
轮辋 Standard Rim |
新胎尺寸 TYRE DIMENSIONS |
不同最高速度下的轮胎最大负荷/kg TIRE LOAD LIMITS(kg)AT VARIOUSMAXIMUM SPEEDS AND ON VARIOUS TYPESOFEQUIPMENT | ||||||||
| 平衡配重式叉车 COUNTERBALANCED LIFTTRUCKS |
其他工业车辆 OTHER INDUSTRIALVEHICLES | ||||||||||
| 外直径 断面宽 | 10km/h | 16km/h | 25km/h | ||||||||
| 0D (mm) |
S.W (mm) |
驱动轮 | 转向轮 | 驱动轮 | 转向轮 | 驱动轮 | 转向轮 | 10km/h | 25km/h | ||
| DRIVING | STEERING | DRIVING | STEERING | DRIVING | STEERING | ||||||
| 6.50-10/5.00 | 5.00F-10 | 571 | 168 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 2095 | 1775 |
| 7.00-12/5.00 | 5.00S-12 | 658 | 172 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 | 2390 | 2025 |
| 18x7-8/4.33 (180/70-8/4.33) |
4.33R-8 | 458 | 157 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 1870 | 1585 |
| 21x8-9/6.00 (200/75-9/6.00) |
0.00E+0 | 531 | 187 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 2230 | 1890 |
| 28x9-15/7.0 (225/75-15/7.0) (8.15-15/7.0) |
7.0-15 | 700 | 223 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 3125 | 2650 |
