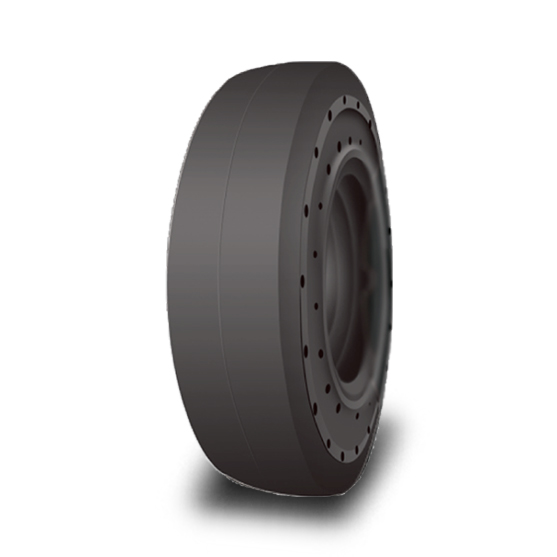

Solid Tyre
Product Details
| 规格 SIZE |
轮辋 Standard Rim |
新胎尺寸 | 不同最高速度下的轮胎最大负荷/kg | |||||||||
| TYRE DIMENSIONS | TIRE LOAD LIMITS(kg)AT VARIOUS MAXIMUM SPEEDS AND ON VARIOUS TYPES OF EQUIPMENT | |||||||||||
| 平衡配重式叉车 | 其他工业车辆 | |||||||||||
| COUNTERBALANCED LIFT TRUCKS | OTHER INDUSTRIAL VEHICLES | |||||||||||
| 外直径 | 断面宽 | 10km/h | 16km/h | 25km/h | ||||||||
| OD | S.W | 驱动轮 | 转向轮 | 驱动轮 | 转向轮 | 驱动轮 | 转向轮 | 10km/h | 25km/h | |||
| (mm) | (mm) | DRIVING | STEERING | DRIVING | STEERING | DRIVING | STEERING | |||||
| 6.50-10/5.00 | 5.00F-10 | 580 | 174 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 2095 | 1775 | |
| 28x9-15/7.0 | 7.0-15 | 722 | 233 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 3125 | 2650 | |
| 250-15/7.0 | 7.0-15 | 722 | 233 | 5220 | 4015 | 4770 | 3670 | 4425 | 3405 | 4015 | 3405 | |
| 装载机用最大负荷/kg | ||||||||||||
| 6km/h | 10km/h | 25km/h | 静态 | |||||||||
| Static State | ||||||||||||
| 20.5-25/17.00 | 17.00/2.0 | 1490 | 520 | 12650 | 11500 | 8750 | 15650 | |||||
